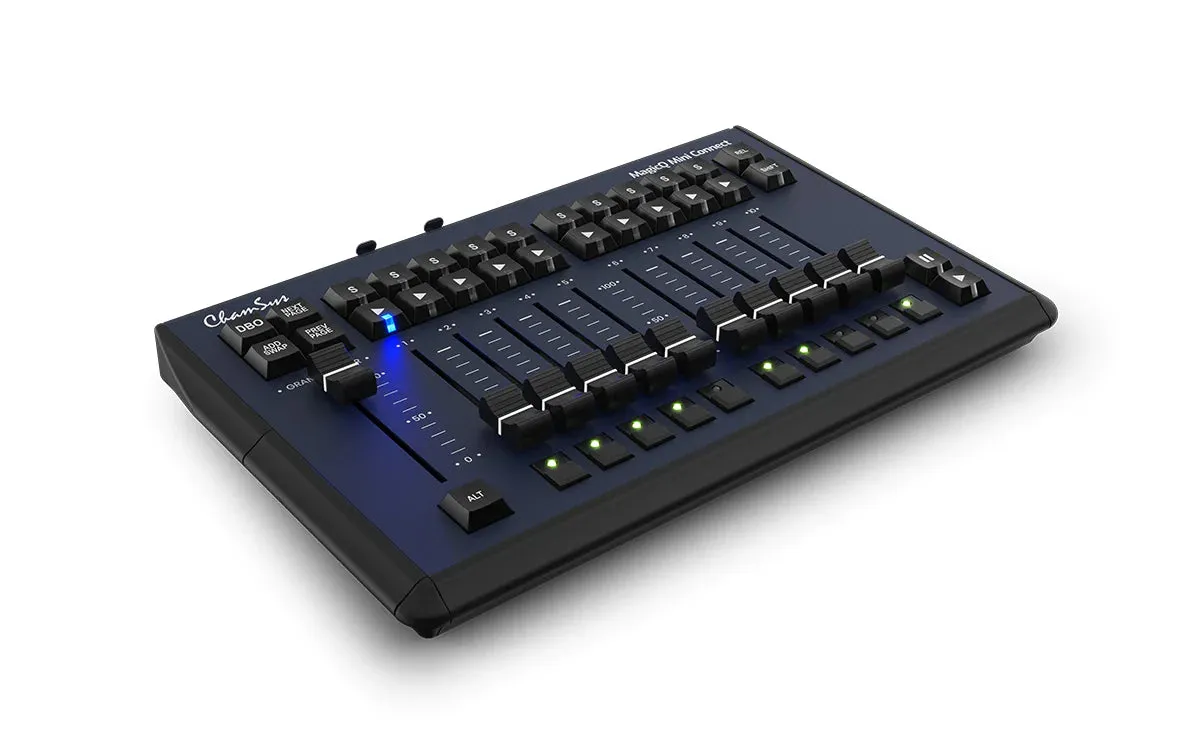

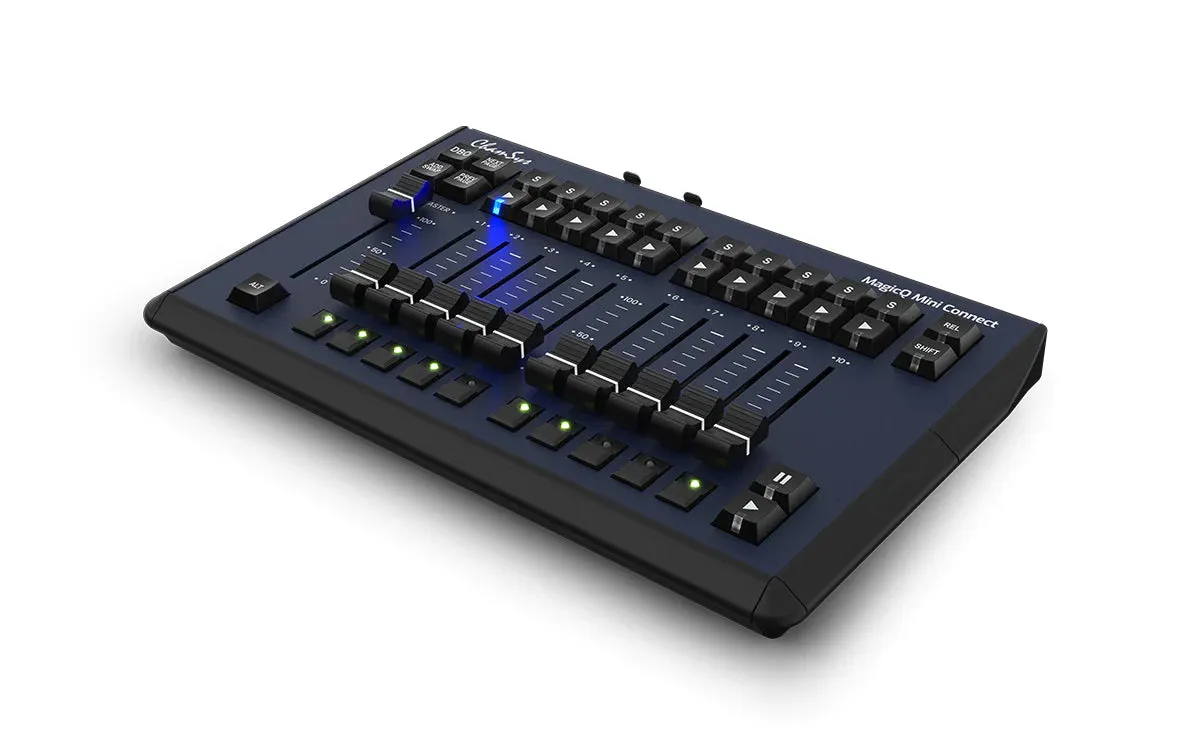

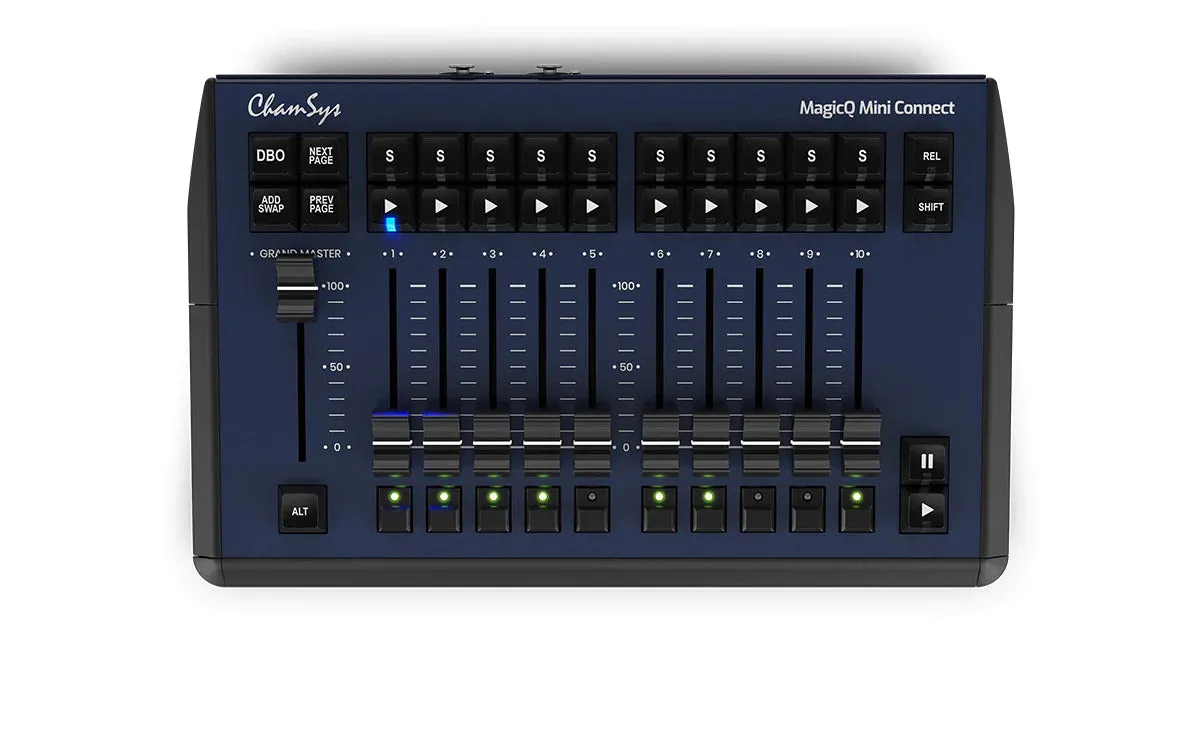

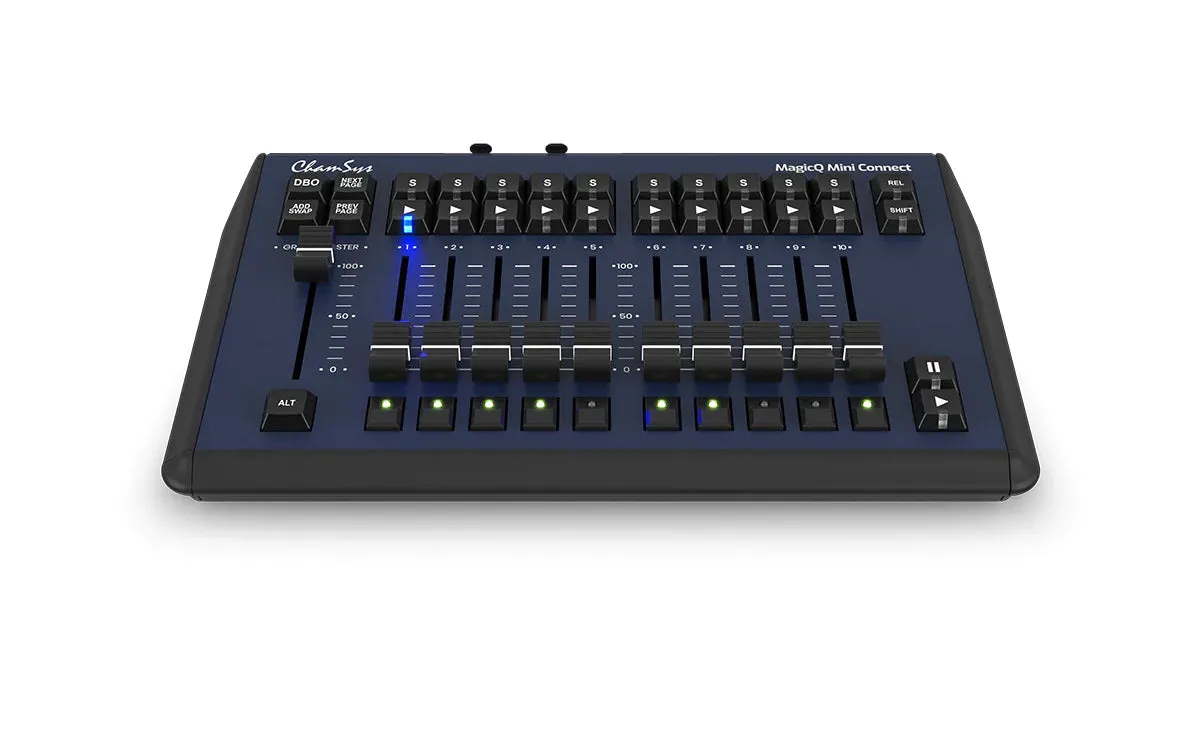

Attached to a Windows, macOS or Linux system running MagicQ software, the Compact Mini Connect turns your computer into a powerful lighting, media and LED control center. Live show controls include 10 playback faders, Flash, Go and Select buttons, and a dedicated Grand Master fader.
The Compact Mini Connect is ideal for theatres, venues, clubs and installations. With 1 direct DMX512 output and an onboard network port that sends up to 64 universes of ArtNet and sACN, the Compact Mini Connect is also capable of commanding large shows as well as offering a cost-effective backup solution for users of larger MagicQ consoles.
- 10 Playbacks
- USB Powered
- Connects to Free MagicQ Software - PC, Mac or Linux
- 1 Direct DMX Output supporting RDM
- Kensington Lock Slot
- Includes Lightweight Durable Case
- 64 Universes via Artnet/sACN
MagicQ Software
MagicQ software offers powerful lighting control with loads of features that lighting designers have some to rely on, such as full lighting visualisation, pixel mapping, and HD media playback on up to 8 different layers, all integrated smoothly to streamline workflows, save time, and shorten learning curve.
Hardware Specifications:
- Fader Playbacks: 10

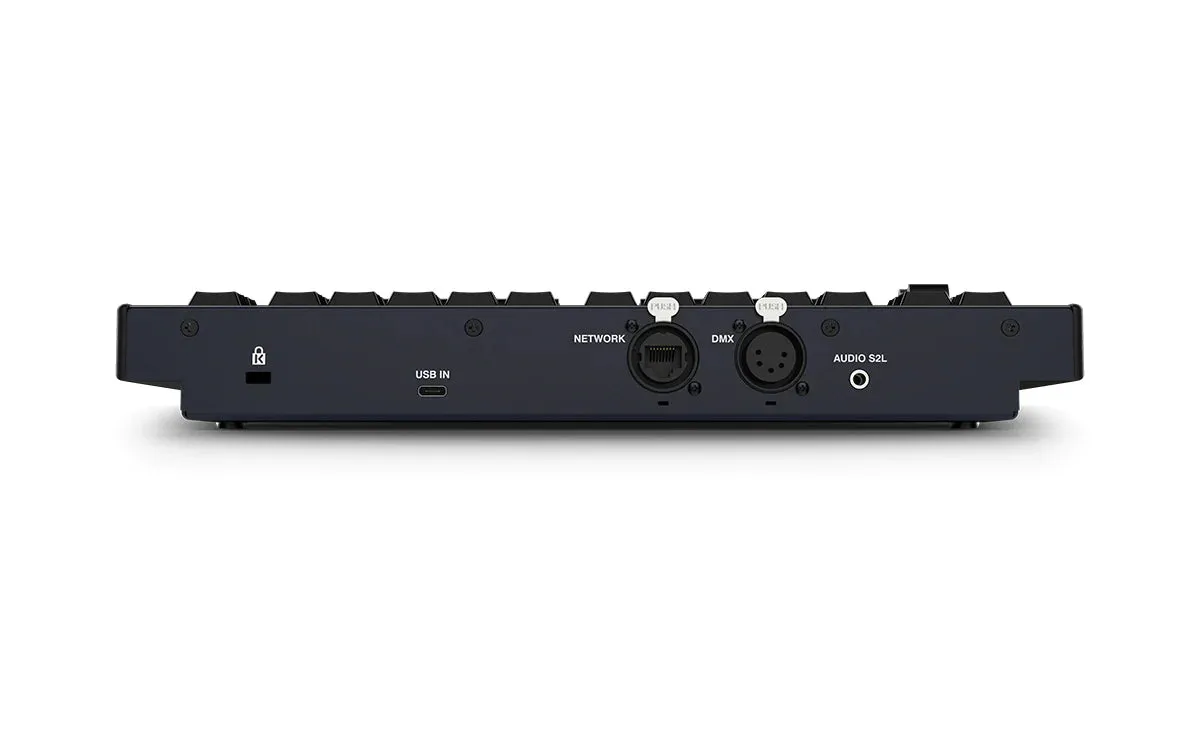

- Direct DMX Outputs: 1
- Network Ports: 1
- Kensington Security Lock Fixing: 1
- USB Connector: Yes - USB-C
- USB Powered: Yes
- Lightweight Durable Case Included
Software Specifications:
- Universes: 64
- Max Number of DMX Channels: 32768
- Max Number of Fixtures Supported: 32768
- Max Number of Cues: 5000
- Max Number of Cue Stacks: 2000
- Max Number of Groups: 5000
- Max Number of Palettes: 4096
- Number of Media Server Layers Supported: 50 (Each different content)
Included Accessories:
- USB A-C Cable: Yes
- Lightweight Durable Case: Yes
Console Weights and Dimensions:
- Width: 327mm
- Depth: 204mm
- Height: 45mm
- Weight: 1.85kg
